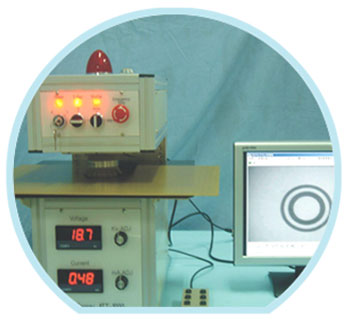

ATT-1000 桌上型 60KV X-Ray Inspection System

Feature：

* Small Volume,Light Weight and Easy Move.
(體積小，重量輕且可隨意搬動)

* Industrial X-Ray Tube,Running Successively.
(工業用 X-Ray 光管可連續照射使用)

* Using ImageIntensifier to add Image Resolution.
(採用影像增強器提高解析度)

* Zoom in/out function.
(影像放大/縮小功能)

* To link Accessory (option) easily.
(週邊多重連接功能)

Specifications：

X-Ray Tube (光管)
Structure (結構)	Industrial package Air Cooling X-Ray Tube (工業級氣冷包覆式光管)
Emission Type (照射方式)	Continuance (連續式)
Power Rate (功率)	60 W
Maxi. Voltage Output (最大輸出電壓)	60 KV
Maxi. Current Output (最大輸出電流)	1.0 mA
Spot Size (光束直徑)	80 Micro
X-Ray Image Detector (影像接收器)
Structure (結構)	Image Intensifier,Lens and CCD (影像增強器、鏡頭及CCD組合)
Resolution (解析度)	15 Micro
Inspect Panel (檢測基版)
Maxi. Size (最大尺寸)	500mm x 600mm (20" x 24")
Maxi. Thickness (最大厚度)	20mm
Whole System (全系統)
Volumn (體積)	420mm (W) x 530mm (H) x 560mm (D)
Weight (重量)	65 Kgs
Leakage (洩漏量)	0.5μSv. / hr
Power (動力源)	110v / 220v 50-60 Hz
Safety Standard (安全標準)	U.S.A. Radiation Safety Califonia Data Sheet 5900-0063. Rev.1
