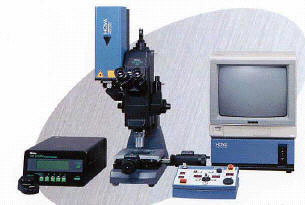

| Laser Marker / Cutter - HOYA (Japan) |
|
HSL-4000 series (氣冷式) |
HSL-5000 series (水冷式) |
|
|
|
Specifications：
|
|
F |
S |
FS |
ST |
FST |
SUV |
Laser |
Wavelength (nm) |
1064 |
532 |
1064 |
532 |
532 |
355 |
1064 |
532 |
355 |
532 |
266 |
|
Maximum energy output
(mJ/pulse) |
12 |
8 |
5 |
4 |
3 |
2 |
1.2 |
1.2 |
0.8 |
2 |
1 |
|
Maximum peak power
(MW) |
1.7 |
1.3 |
0.7 |
0.6 |
0.4 |
0.3 |
0.17 |
0.17 |
0.13 |
0.3 |
0.2 |
|
Pulse width(nsec) |
8-6 |
8-6 |
8-6 |
8-6 |
8-6 |
7-5 |
8-6 |
8-6 |
7-5 |
8-6 |
7-5 |
|
Rep.Rate
(Hz) |
[HSL-4000]1- 3 / [HSL-5000]1-20 |
|
Square slit |
ElectricXY / Max.3mm square |
|
Oputput Variable |
0-100% (200steps) |
|
Cotrol box |
Functions |
Wavelength switching / Repeat frequency setup / Output variable / Slit variable control / Laser shot count setup / Process recipe memory / Guide light control / Laser shot button / Error code indicator / Emergency stop button |
|
Power source |
Interface |
RS-232C |
|
Power usage |
AC100V(with earth)7.5A |
|
Cable length |
Power suply to laser head length: 3m (standard) |
|
|
|
|
